Interactive Technologies CueServer2 Pro Euro, inkl. 2 Univ. 19" Montagebügel, ACHTUNG: Zubehör Rear Port Module nötig!!

Overview

The CueServer 2 Pro (CS-900) is housed in a sturdy 1U rack-mount enclosure with removable brackets.

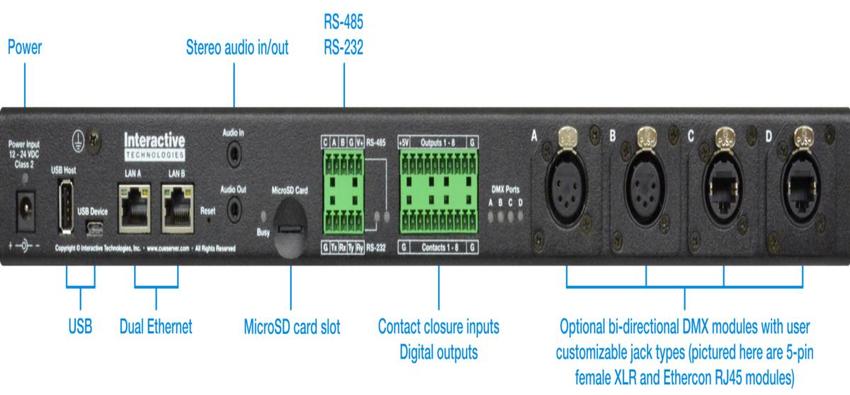

CueServer 2 Pro boasts an innovative modular DMX port system. Four bi-directional DMX ports (optional) on the back of the unit are user-configurable with any of seven available port modules. These interchangeable modules allow CueServer 2 Pro to be customized for different installation environments eliminating the need for external adaptors.

CueServer 2 Pro features dual LAN ports for splitting Ethernet-based lighting and management data onto separate networks if desired.

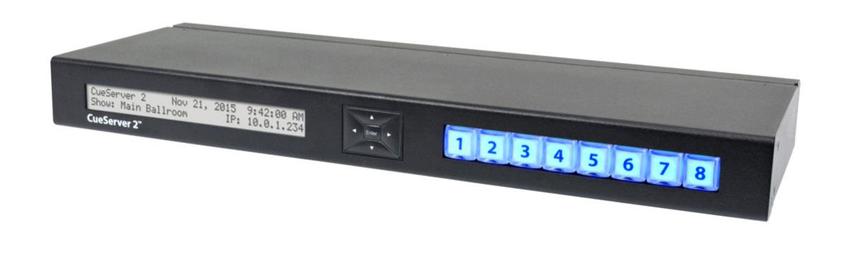

The front-panel of CueServer 2 Pro has eight customizable function buttons. Each button has fully controllable RGB backlighting and field-replaceable legends for project personalization. A navigation keypad is used to operate the onboard LCD menu for basic system settings, show selection, and macro execution.

Key Features

Completely self-contained lighting playback, architectural processor, and DMX fade engine
Seamless handling of Cue Lists, Presets, and Streams
Control of up to 32 universes of DMX or 32 independent playback timelines
Dynamic patching of up to 16,384 channels to 128 separate sACN, Art-Net, or KiNET universes
Dual Ethernet ports for separate configurable lighting data and management networks
Flexible module-based bi-directional DMX ports for custom jack configurations (see Part Numbers below for options)
Front-panel configurable function buttons with RGB backlighting and field-replaceable legends
Creation of lighting scenes directly or capture from external sources
Powerful CueScript scripting language
Real-Time clock with astronomical functions and calendar events
Built-in web server for hosting custom interactive web pages
Multi-show storage and removable Micro SD memory card
System integration via Ethernet, Serial, Digital I/O, and Audio
Compatible with CueStation buttons and CueTouch touchscreens
Easy interfacing with Crestron, AMX, Vantage, Control 4, Medialon, Savant and other automation systems
Native programming environment for Mac and Windows
1U rack-mounted enclosure with removable brackets
